Effects

Scroll Prev Top Next More



ð Text Style

Normal - Text appears as standard one dimensional letters

Raised - Text appears as raised three dimensional letters

Recessed - Text appears as sunken three dimensional letters

Shadow - Text is shadowed to the lower right



Show Accelerator Character

If unchecked, the text will show the ampersand (&) symbol as opposed to underscoring the next character for a keyboard shortcut



ð Options

Shadow Color

Specifies the color of the shadow characters when Shadow is chosen in the Text Style area

Shadow Depth

Specifies the distance that the shadow characters are moved from the control characters



ð Rotation

The text can be either no rotation, flat rotation, or curved rotation. When using curved rotation, the nine position radio button group is used to indicate the central point of curvature



Note: Not all Windows fonts support rotation. You will need to experiment if your choice of font will rotate or not.



ð Angle

The degree of curvature is controlled by the slide scale from 0 to 360 degrees



ð Condense Caption

Specifies if and how the caption will be condensed if the text exceeds the control size



ð Layout

Specifies the layout location of the text within the control



ð Colors

Active Color

Specifies the color Label that has not yet been clicked on by the user

Passive Color

Specifies the color Label that has been clicked on by the user

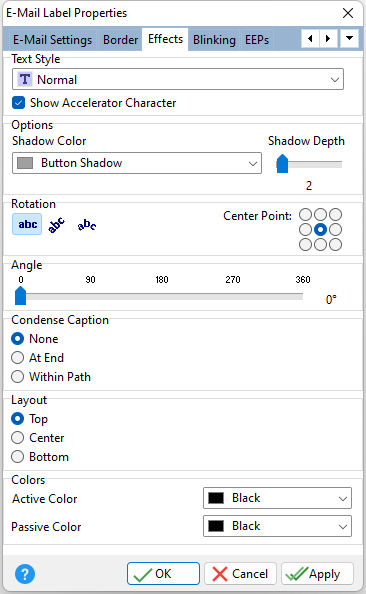

EMailLabel_Effects
