Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Variable Controls > Variable Radio Group

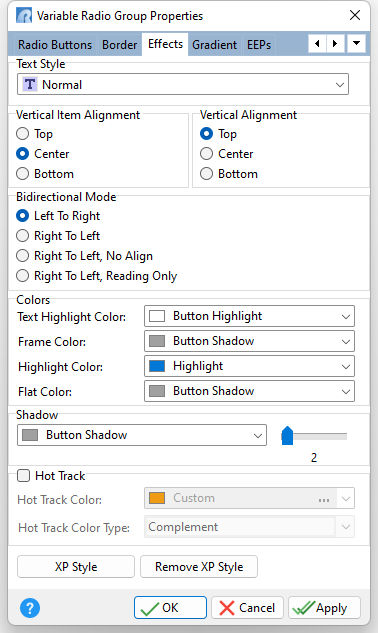

Effects

Scroll Prev Top Next More



ð Text Style

Normal - Text appears as standard one dimensional letters

Raised - Text appears as raised three dimensional letters

Recessed - Text appears as sunken three dimensional letters

Shadow - Text is shadowed to the lower right



ð Vertical Alignment

Specifies the vertical justification of the text within the object



ð Bidirectional Mode - Adjusts the text appearance and behavior when the application runs in a locale that reads from right to left, instead of left to right

Left To Right - Specifies the direction of the text from left to right

Right To Left - Specifies the direction of the text from right to left

Right To Left, No Align - Specifies whether the control's alignment should be reversed right-to-left

Right To Left, Reading Only - Specifies whether the control is using a right-to-left reading order



ð Colors

Text Highlight Color

Text appears as standard one dimensional letters

Frame Color

Specifies the color of the frame

Highlight Color

Specifies the highlight color of the object's border

Flat Color

Specifies the color for the radio group box when "Flat" is selected from the "Group Style" settings



ð Shadow

Specifies the color of the shadow characters when Shadow is chosen in the Text Style area

Shadow Depth

Specifies the distance that the shadow characters are moved from the control characters



ð Hot Track

Enables a highlight effect when the mouse hovers over the object

Hot Track Color

Specifies the color of the hot track highlight

Hot Track Color Type

Specifies the color effect type

Actual - Specifies the color

Complement - Specifies an complimentary, or opposite, color to the one specified



ð XP Style - Specifies the display properties to appear as a Windows XP operating system control



ð Remove XP Style - specifies to remove the XP Style properties

VarRadioGroup_Effects
