Line

Scroll Prev Top Next More

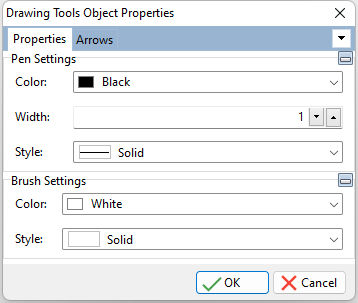

Pen Settings



Color - specifies the line color

Width - Specifies the line width

Style - specifies the line style



Brush Settings



Color - specifies the fill color for the arrow start and end shapes, if defined

Style - specifies the fill style for the arrow start and end shapes, if defined







RBLOB_Line_Prop

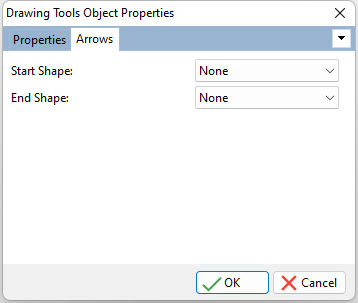

Start Shape - specifies the arrow start shape for the line



End Shape - specifies the arrow end shape for the line

RBLOB_Line_Arrow

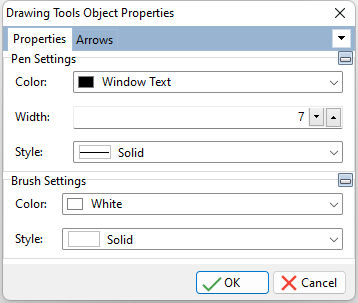

The following object properties for a line were used to add the line object in the screen shot below.



RBLOB_Line_Custom

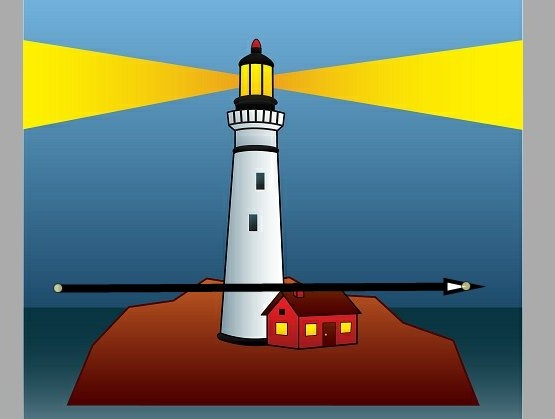

Notice the handlebars on each end of the line that can be used to stretch or move the starting/ending points for the arrow.



Lighthouse_Line
