Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Additional Controls > Drop-Down Menu Button

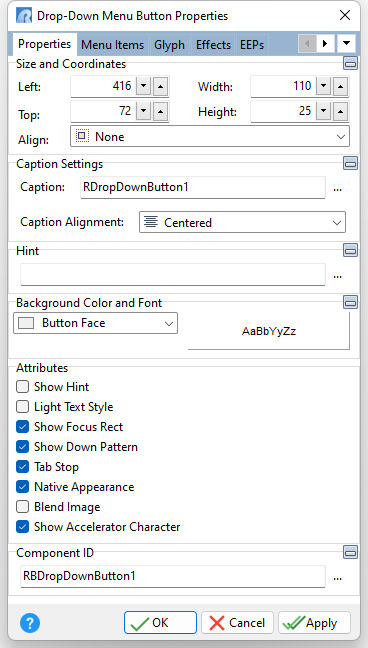

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption Settings

Caption

Value which the object will display when the form is run

Caption Alignment

Specifies the justification of the text within the object. The options are:

Left - Text is left justified

Center - Text is center justified

Right - Text is right justified



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Attributes

Show Hint

Displays the defined hint \Light Text Style

Uses only the shadow to give the caption a three dimensional appearance

Show Focus Rect

Displays the focus rectangle that appears on form objects in the tab order

Show Down Pattern

Displays a pattern on the control when pressed down

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Native Appearance

Specifies to display the control where the appearance will be rendered by the operating system

Blend Image

Specifies if a clear display of the image is used

Show Accelerator Character

If unchecked, the text will show the ampersand (&) symbol as opposed to underscoring the next character for a keyboard shortcut



ð Component ID

Unique identifier used when passing property parameters in statements

DropDownButton_Prop
