Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption

Value which the object will display when the form is run



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Colors

Background Color

Specifies the background color of the object

Active Color

Specifies the font color of the moving text pixels

Passive Color

Specifies the font color of the inactive text pixels



ð Text Alignment

Specifies the justification of the text within the object. The options are:

Left - Text is left justified

Center - Text is center justified

Right - Text is right justified



ð Scroll Type

Direction of text movement: None; Right to Left; Left to Right



ð Scroll Delay

Specifies the scroll delay, in milliseconds, with 100 set as the maximum value



ð Attributes

Show Hint

Displays the defined hint



ð Component ID

Unique identifier used when passing property parameters in statements

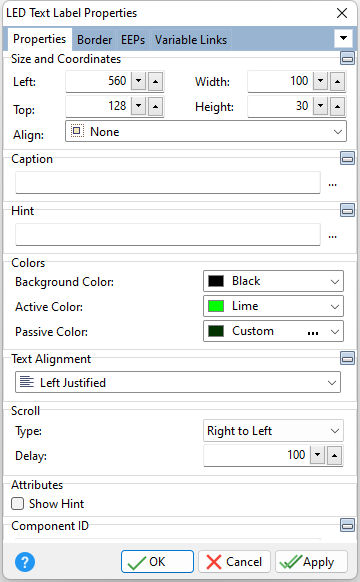

LEDLabel_Prop
