R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Legacy Controls > Shape Button

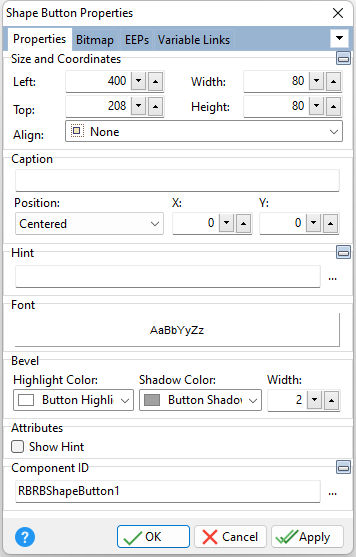

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption

Value which the object will display when the form is run

Position

Position of the specified caption text which can be either centered or at X and Y coordinates

X

Specifies the X ordinate value when XY is specified in the Position field

Y

Specifies the Y ordinate value when XY is specified in the Position field



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Font

AaBbYyZz

Specifies the font style, size and color for the object



ð Bevel

Highlight Color

Specifies the highlight color of the object's bevel

Width

Specifies the width, in pixels, of the object's bevel

Border Shadow Color

Specifies the shadow color of the object's border



ð Attributes

Show Hint

Displays the defined hint



ð Component ID

Unique identifier used when passing property parameters in statements

ShapeButton_Prop
