R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Legacy Controls > Variable Date/Time Picker

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Color

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Variable

Choose the variable whose value will appear in the object from the list of currently defined variables



ð Attributes

Calendar Autosize

Determines whether or not the window will automatically resize to view one month at a time

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Show Hint

Displays the defined hint

Show Today

Displays today's date across the calendar bottom

Encircle Today

Encircles today's date on the calendar with a circle or square, which is based on the operating system and theme

Show Week Numbers

Displays a the week number in a vertical column

Flat Buttons

Displays flat buttons on the calendar

Recalc Form Variables

Recalculates all variables defined within the form when focus is shifted away from the object



ð Component ID

Unique identifier used when passing property parameters in statements



Note:

The calendar control displayed uses a native Windows operating system calendar control which is based on the operating system version. The calendar will display differently between Windows 2000 and XP versus Windows Vista and 7 due to the different calendar controls used within the operating systems.

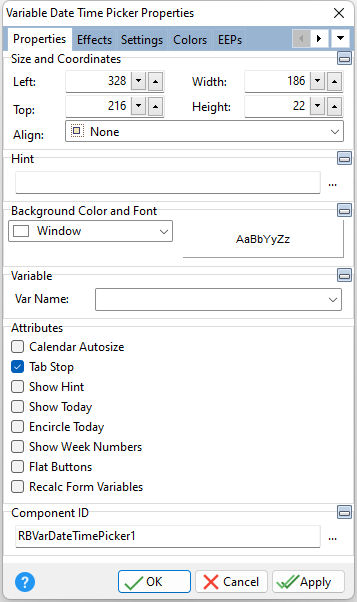

VarDateTimePicker_Prop
