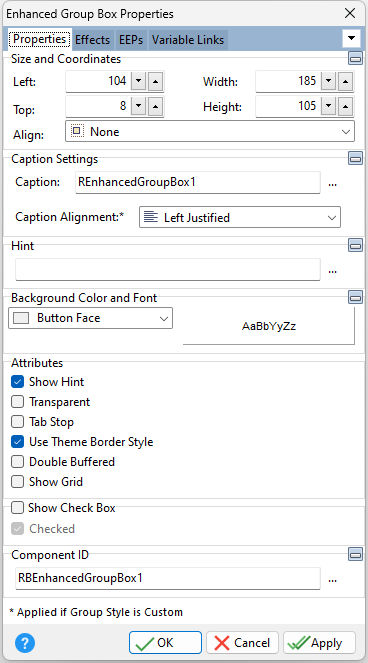

Properties

Scroll Prev Top Next More



Tip! - A Group Box control can be converted to an Enhanced Group Box control. Within the Form Designer, right click on the Group Box and select the "Convert to Enhanced Group Box " option.



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption Settings

Caption

Value which the object will display when the form is run

Caption Alignment

Specifies the horizontal justification of the text within the object. The options are:

Left - Text is left justified

Center - Text is center justified

Right - Text is right justified



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Color

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Attributes

Show Hint

Displays the defined hint

Transparent

Allows the background to become transparent to the parent object

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Use Theme Border Style

Uses the border style of the Theme, if specified. Otherwise, the defined border color and width will be displayed.

Double Buffered

Specifies to reduce painting operations (flickering) for the control background by storing an internal bitmap image

Show Grid

Displays a grid pattern on the box

Show Check Box

Displays a check box on the border, which may be used to disable all objects within the group box

Checked

Specifies the default state of the check box



ð Component ID

Unique identifier used when passing property parameters in statements
