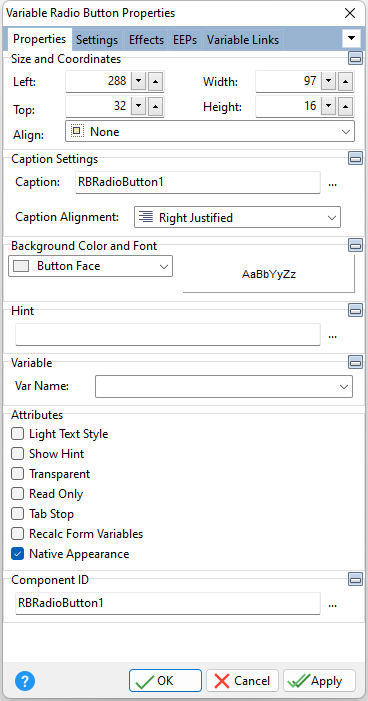

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption Settings

Caption

Value which the object will display when the form is run

Caption Alignment

Specifies the justification of the text within the object. The options are:

Left - Text is left justified

Center - Text is center justified

Right - Text is right justified



ð Background Color and Font

Color

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Variable

Choose the variable whose value will appear in the object from the list of currently defined variables



ð Attributes

Light Text Style

Uses only the shadow to give the caption a three dimensional appearance

Show Hint

Displays the defined hint

Transparent

Allows the background to become transparent to the parent object

Read Only

Restricts the user from making any changes to the current value. The field is still part of the tab order.

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Recalc Form Variables

Recalculates form variables, defined within the Expression Builder, when focus is shifted away from the object

Native Appearance

Specifies to display the control where the appearance will be rendered by the operating system



ð Component ID

Unique identifier used when passing property parameters in statements
