R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Variable Controls > Variable User Defined Combo Box

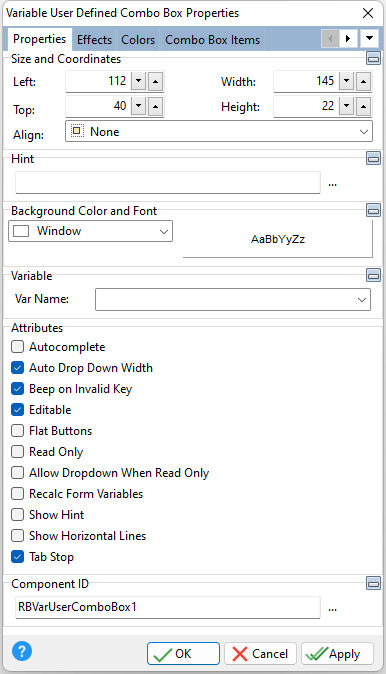

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Color

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Variable

Choose the variable whose value will appear in the object from the list of currently defined variables



ð Attributes

Autocomplete

Predicts a word or phrase that the user wants to type in without the user actually typing it in completely

Auto Drop Down Width

Specifies if the drop down will match the width of the longest item in the list

Beep on Invalid Key

Sounds a beep when an invalid match is found for the pressed key

Editable

Allows the user to edit the current value

Flat Buttons

Displays flat buttons on the control

Read Only

Restricts the user from making any changes to the current value. The field is still part of tab order.

Allow Dropdown When Read Only

Allows the dropdown menu to be accessed, even if the value is read only

Recalc Form Variables

Recalculates form variables, defined within the Expression Builder, when focus is shifted away from the object

Show Hint

Displays the defined hint

Show Horizontal Lines

Displays horizontal line separators between items

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field



ð Component ID

Unique identifier used when passing property parameters in statements

VarUserDefinedComboBox_Prop
