R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Database Controls > DB User Defined List Box

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Color

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Table and Field

Table Name

Specifies the table that the control is associated with

Data Field

Specifies the column that the control will receive its data from



ð Attributes

Beep on Invalid Key

Sounds a beep when an invalid match is found for the pressed key

Show Hint

Displays the defined hint

Show Item Hints

Displays a hint for the lookup item

Use Gradients

Allows to gradient to appear on the object

Show Horizontal Lines

Displays horizontal line separators between items

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Show Check Boxes

Specifies if a check box column is displayed at the far left of the list

OnClickEPP With Mouse Only

Specifies the "On Click" EEP event will fire only with mouse clicks. Arrow key selections will not trigger the event.



ð Component ID

Unique identifier used when passing property parameters in statements

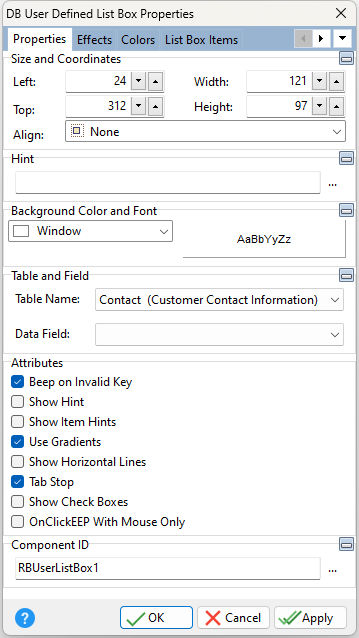

DBUserDefinedListBox_Prop
