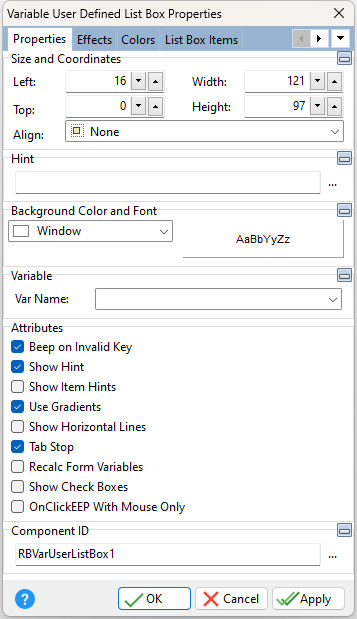

ð Size and Coordinates Left Specifies the left (horizontal) ordinate pixel of the object Top Specifies the top (vertical) ordinate pixel of the object Width Specifies the object width, in pixels Height Specifies the object height, in pixels Align Specifies the alignment of the object. The options are: None - Object can be moved anywhere because it is not aligned to the parent object Client - Aligns itself to the available client area by expanding to fill the parent object that it is in Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width
ð Hint Value which will display when the object is hovered over by the mouse cursor
ð Background Color and Font Color Specifies the background color of the object AaBbYyZz Specifies the font style, size and color for the object
ð Variable Choose the variable whose value will appear in the object from the list of currently defined variables
ð Attributes Beep on Invalid Key Sounds a beep when an invalid match is found for the pressed key Show Hint Displays the defined hint Show Item Hints Displays a hint for the lookup item Use Gradients Allows to gradient to appear on the object Show Horizontal Lines Displays horizontal line separators between items Tab Stop Determines whether or not field is part of tab order and user is able to land on this field Recalc Form Variables Recalculates form variables, defined within the Expression Builder, when focus is shifted away from the object Show Check Boxes Specifies if a check box column is displayed at the far left of the list OnClickEPP With Mouse Only Specifies the "On Click" EEP event will fire only with mouse clicks. Arrow key selections will not trigger the event.
ð Component ID Unique identifier used when passing property parameters in statements |
|
