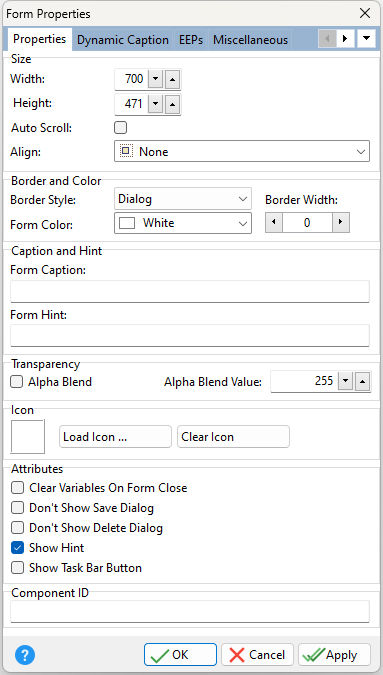

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Width

Default: 640

Specifies the horizontal size of the form in pixels. Use the Width property to change the width of the form.

Height

Default: 480

Specifies the vertical size of the form in pixels. Use the Height property to change the height of the form.

Align

Specifies the alignment of the form. The options are:

None - Form can be moved anywhere because it is not aligned to anything

Client - Aligns itself to the available client area by expanding to fill the area that it is in

Left - Aligns itself to the left side of the area growing or shrinking to match parent height

Right - Aligns itself to the right side of the area growing or shrinking to match parent height

Top - Aligns itself to the top side of the area growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the area growing or shrinking to match parent width

Auto Scroll

Indicates whether scroll bars appear automatically on the scrolling windowed control if it is not large enough to display all of its controls.



ð Border and Color

Border Style

Default: None

Specifies the appearance and behavior of the form border. Use Border Style to get or set the appearance and behavior of the form border. Border Style can be any of the following values:



None

Not resizable; no visible border line

Dialog

Not resizable; standard dialog box border

Single

Not resizable; single-line border

Sizeable

Standard resizable border

Tool Window

Like Single but with a smaller caption

Sizeable Tool Window

Like Sizeable with a smaller caption



Border Width

Default: 0

Specifies the width of the form's border in pixels. Use Border Width to get or set the width of the form's border.

Form Color

Default: BtnFace

Specifies the background color of the form. Use Color property to read or change the background color of the form. Form background colors are grouped into Windows Control Panel and closest matching color in system palette. Windows Control Panel Colors:



Default

The default color for the control to which the color is assigned

ScrollBar

Current color for the of scroll bar track

Background

Current background color of the Windows desktop

ActiveCaption

Current color of the title bar of the active window

InactiveCaption

Current color of the title bar of inactive windows

Menu

Current background color of menus

Window

Current background color of windows

WindowFrame

Current color of window frames

WindowText

Current color of text in windows

CaptionText

Current color of the text on the title bar of the active window

ActiveBorder

Current border color of the active window

InactiveBorder

Current border color of inactive windows

AppWorkSpace

Current color of the application workspace

Highlight

Current background color of selected text

HightlightText

Current color of selected text

BtnFace

Current color of a button face

BtnShadow

Current color of a shadow cast by a button

GrayText

Current color of text that is dimmed

BtnText

Current color of text on a button

InactiveCaptionText

Current color of the text on the title bar of an inactive window

BtnHighlight

Current color of the highlighting on a button

3DDkShadow

Dark shadow for three-dimensional display elements

3DLight

Light color for three-dimensional display elements (for edges facing the light source)

InfoText

Text color for tool tip controls

InfoBk

Background color for tool tip controls



System Palette Colors:



Black

Maroon

Green

Olive

Navy Blue

Purple

Teal

Gray

Silver

Red

Lime Green

Yellow

Blue

Fuchsia

Aqua

White

Custom...





ð Caption and Hint

Form Caption

Specifies a text string that identifies the form to the user. Use Caption to specify the text string that appears as a window title or labels for the form. To underline a character in a Caption that labels a form, include an ampersand (&) before the character. To display an ampersand character in the caption, use two ampersands (&&).

Form Hint

Value which will display when form is hovered over by the mouse



ð Transparency

Alpha Blend

Specifies whether a color on the form appears transparent. Use Transparent Color to indicate that one of the colors on the form should be treated as transparent, allowing windows behind the form to completely show through. The Transparent Color Value property indicates the color that appears completely transparent.

Alpha Blend Value

Sets the transparency value for how transparent the form will be to the background



Note:

To make the entire form transparent, or to make it translucent rather than transparent, set the Alpha Blend property to True (checked) and set the Alpha Blend Value accordingly.



Setting Alpha Blend property to True makes the form to represent as a layered window and allows a translucent color. The Alpha Blend Value property specifies the degree of translucency.



Transparency property does not work on all systems. The application must be running under Windows 2000 or Windows XP and the machine must be a Pentium 90 or better.



ð Icon

Load Icon

Browses to load a 16x16 pixel bitmap image

Clear Icon

Clears the currently loaded icon image



ð Attributes

Clear Variables After Form Close

Clears all variables defined within the form after it closes

Don't Show Save Dialog

Disables the display of the "Save Changes?" dialog box upon closing the form

Don't Show Delete Dialog

Disables the display of the "Confirm Deletion?" dialog box upon closing the form

Show Hint

Displays the defined hint for the form

Show Task Bar Button

Specifies an MDI form to have its own entry in the Windows task bar, making it easy to switch between forms



ð Component ID

Unique identifier used when passing property parameters in statements
