R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Additional Controls > Enhanced Speed Button

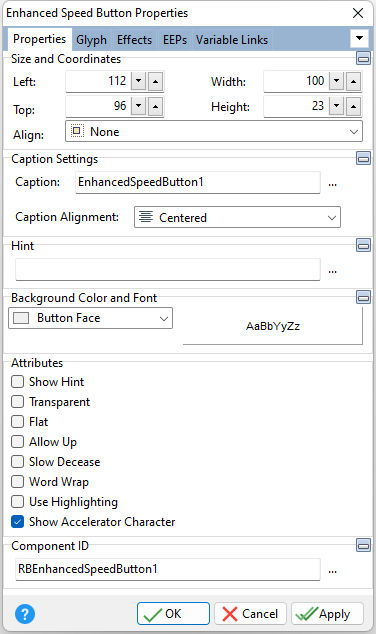

Properties

Scroll Prev Top Next More



Tip! - A Speed Button control can be converted to an Enhanced Speed Button control. Within the Form Designer, right click on the Speed Button and select the "Convert to Enhanced Speed Button" option.



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption Settings

Caption

Value which the object will display when the form is run

Caption Alignment

Specifies the horizontal justification of the text within the object. The options are:

žLeft - Text is left justified

Center - Text is center justified

Right - Text is right justified



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Attributes

Show Hint

Displays the defined hint

Transparent

Allows the background to become transparent to the parent object

Flat

Allows the button to appear flat without a frame unless the cursor moves over the button

Allow Up

Displays the button in the up position. With multiple glyph in a group, this allows the button to behave in a Radio Group button behavior.

Slow Decease

Slows down the transition from Hot Track color to button color.

Word Wrap

Forces text to wrap at the nearest word based on the user defined width

Use Highlighting

Underlines text when hovered over or selected

Show Accelerator Character

If unchecked, the text will show the ampersand (&) symbol as opposed to underscoring the next character for a keyboard shortcut



ð Component ID

Unique identifier used when passing property parameters in statements

EnhancedSpeedButton_Prop
