Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Legacy Controls > Separator

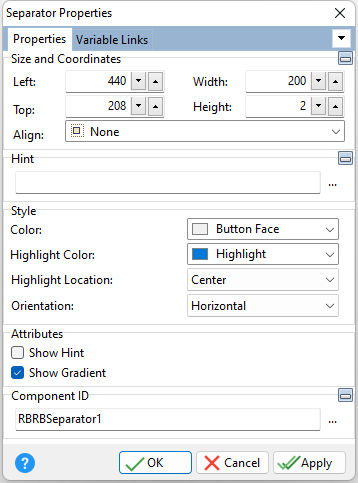

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Style

Color

Specifies the color of the separator

Highlight Color

Specifies the highlight color of the object's gradient

Highlight Location

Specifies the location of the object's gradient

Orientation

Specifies the orientation of the separator object



ð Attributes

Show Hint

Displays the defined hint

Show Gradient

Allows to gradient to appear on the separator object



ð Component ID

Unique identifier used when passing property parameters in statements

Separator
