Scales

Scroll Prev Top Next More

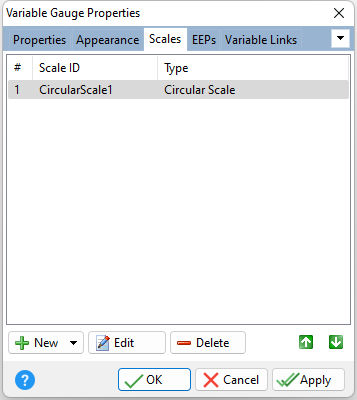

ð Scales

New - adds a new scale to the gauge, which includes:



Circular Scale - visualizes its values within a full circle, and mimics speedometers, tachometers, manometers, stopwatches, etc.

Circular Half Scale - visualizes its values on the upper half of a circular scale, and imitates analog measuring instruments, such as voltmeters, galvanometers, multimeters, etc.

Circular Quarter Left Scale - visualizes its values on the upper-left quarter of a circular scale, and can be used for the same purposes as the half-circular scales

Circular Quarter Right Scale - visualizes its values on the upper-right quarter of a circular scale, and can be used for the same purposes as the half-circular scales

Linear Scale - visualizes its values via the level bar, and are designed to mimic thermometers and indicators

Digital Scale - displays either text or numbers like a LED label, and is designed to imitate the work of a digital clock, audio receiver, or other LED screen device



Edit - edits the selected scale

Delete - deletes the selected scale



Note:



The scale sequence can be reordered by selecting the green up and down arrow buttons.



VarGauge_Scales
