Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Database Controls > DB Radio Group

Settings

Scroll Prev Top Next More



ð Attributes

Light Text Style

Uses only the shadow to give the caption a three dimensional appearance

Show Hint

Displays the defined hint

Transparent

Allows the background to become transparent to the parent object

Read Only

Restricts the user from making any changes to the current value. The field is still part of the tab order.

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Space Evenly

Adds even spacing between radio group items

Use Theme Border Style

Uses the border style of the Theme, if specified. Otherwise, the defined border color and width will be displayed.

Double Buffered

Specifies to reduce painting operations (flickering) for the control background by storing an internal bitmap image

Parent Background

Forces the control to follow the color attributes of its parent control, working like a transparency, in taking the parent object as the background

Click Only In Item

Specifies a mouse click only registers when the action occurs upon a radio button item. The default is false.



ð Use Custom Glyphs

Loads a custom glyph image file to display on the button object. The custom glyph must contain all 6 different radio button states like the image displayed below:



RadioButtonGlyph



The radio button states must progress in the order below:



Glyph #

Description

1

Unchecked

2

Checked

3

Unchecked Down

4

Checked Down

5

Unchecked Disabled

6

Checked Disabled



Win Mask Color

Specifies the color for the custom glyph background mask color. For the above example glyph, the window mask color is fuchsia.

Transparent Color

Specifies color for custom glyph background color when the transparent attribute is enabled.



ð Visual Style

Specifies the visual style for the control

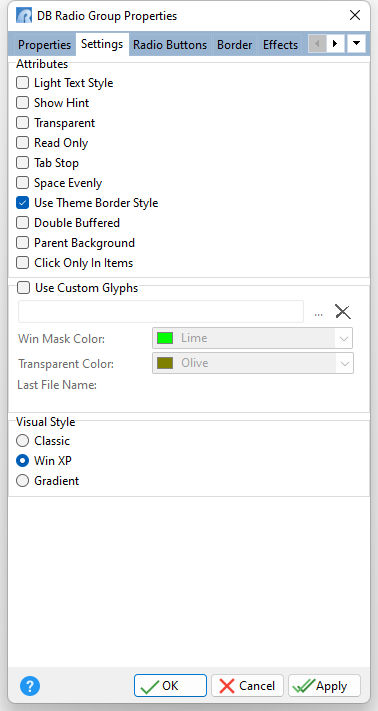

DBRadioGroup_Settings
