R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Additional Controls > Enhanced Tab Control

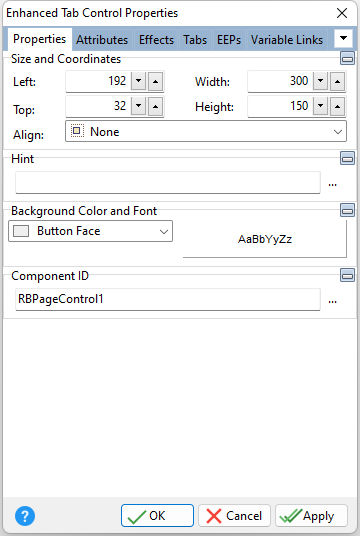

Properties

Scroll Prev Top Next More



Tip! - A Tab Control can be converted to an Enhanced Tab Control. Within the Form Designer, right click on the Tab Control and select the "Convert to Enhanced Tab Control" option.



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Component ID

Unique identifier used when passing property parameters in statements

EnhancedTabControl_Prop
