R:BASE 11 Help

Navigation: Command Index > G > GATEWAY

Import Dialog

Scroll Prev Top Next More

The File Gateway utility can be launched with the available import options preselected, allowing for easier file transfers for end users. The OPTION keyword must immediately follow the IMPORT keyword in order for the default options to be assigned.



GATEWAY_Import_Dialog





Default Parameter

Value

DEFAULT_EXISTING_TABLE

value

ONLY_TABLE

value

DEFAULT_NEW_TABLE

value

DEFAULT_FORMAT

DB, DBF, TXT, CSV, DAT, PRN, TAB, ASC, HTM, HTML, XLS, XLSX, XLSW, WK1, WK2, WR1, WQ1, XML, MDB, ACCDB, JSON, ODS

DEFAULT_FILENAME

value

DEFAULT_CREATE_TEMPORARY

ON/OFF

DEFAULT_PASSWORD

value

DEFAULT_SHOW_PROGRESS

ON/OFF

DEFAULT_SHOW_MESSAGES

ON/OFF

QUALIFIER

PIPE, <character>

SEPARATOR

COMMA, TAB, SEMICOLON, SPACE, PIPE, NONE, <character>

REC_SEP

CR, LF, CRLF, <character(s)>



Example 01:

-- launches the Gateway Utility with only the Import tab displayed

GATEWAY IMPORT



Example 02:

-- launches the Gateway Utility Import tab with Customer preselected as the default table, and prevents the selection of other tables

GATEWAY IMPORT OPTION DEFAULT_EXISTING_TABLE Customer +

|ONLY_TABLE Customer



Example 03:

-- launches the Gateway Utility Import tab with NewLeads specified as the new table

GATEWAY IMPORT OPTION DEFAULT_NEW_TABLE NewLeads



Example 04:

-- launches the Gateway Utility Import tab with NewLeads specified as the new table with XLS as the file format

GATEWAY IMPORT OPTION DEFAULT_NEW_TABLE NewLeads +

|DEFAULT_FORMAT XLS



Example 05:

-- launches the Gateway Utility Import tab with ACHTrans as the new table, ASC as the file format, and ACH_Import.asc as the file name

GATEWAY IMPORT OPTION DEFAULT_NEW_TABLE ACHTrans +

|DEFAULT_FORMAT ASC +

|DEFAULT_FILENAME ACH_Import.asc



Example 06:

-- launches the Gateway Utility Import tab with Questionnaire specified as the default table, CSV as the file format, and the progress and messages set to display

GATEWAY IMPORT OPTION DEFAULT_EXISTING_TABLE Questionnaire +

|DEFAULT_FORMAT CSV +

|DEFAULT_FILENAME Questionnaire.csv +

|DEFAULT_SHOW_PROGRESS ON +

|DEFAULT_SHOW_MESSAGES ON



Example 07:

-- launches the Gateway Utility Import tab with ACHTrans as the new "temporary" table, ASC as the file format, ACH_Import.asc as the file name, and the progress and messages set to not display

GATEWAY IMPORT OPTION DEFAULT_NEW_TABLE ACHTrans +

|DEFAULT_FORMAT ASC +

|DEFAULT_FILENAME ACH_Import.asc +

|DEFAULT_CREATE_TEMPORARY ON +

|DEFAULT_SHOW_PROGRESS OFF +

|DEFAULT_SHOW_MESSAGES OFF

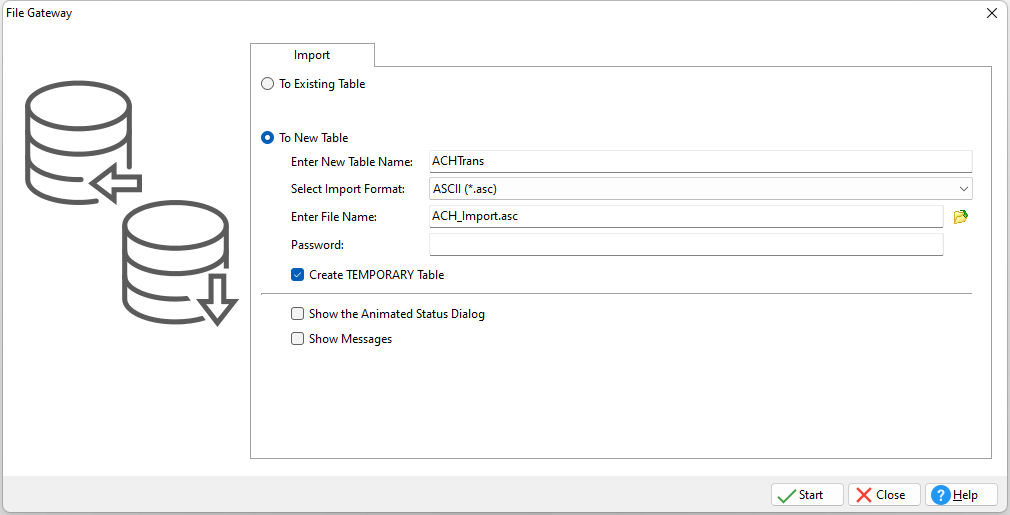

GATEWAY_Import_Dialog_ASC
