Pop-up Menu

Scroll Prev Top Next More



ð User can Access a Pop-up Menu

Enables the user to access a pop-up menu when the field is double-clicked. By default, this will return all the values in the table for the associated column



ð Use a Custom Pop-up

Pop-up menu can be custom designed to return lookup values from other tables/views, and display optional Dynamic Where Clauses



ð Automatic Pop-up

Pop-up menu is automatically presented when the focus is shifted to the object



ð Skip to Next After

Focus is automatically shifted to the next object in the tab order when the pop-up menu is closed



ð Pop-up Menu Settings

Table/View Name

Specifies the table/view that the menu values will be retrieved from

Pop-up Type

Specifies the type of pop-up menu: Single Column; Multi Column; Expression; Expression with Column

Column Returned

Specifies the column from the table/view for the data source

Menu Values

If you selected "Multi Column" from the Pop-Up Type, you can type in the columns, or select the "..." button to pick the available columns from a list. If you selected "Expression" or "Expression with Column" from the Pop-Up Type, enter the expression in this field.

Menu Caption

Caption value which the pop-up menu will display when visible

Menu Title

Title value which the pop-up menu will display when visible

Number of Lines

Limits the number of values displayed in the Pop-up Menu

Show Lines

Displayed lines between the values in the Pop-up Menu

Distinct Values

Displayed distinct values in the Pop-up Menu



ð Title Background Color and Font

Specifies the background color of the title

AaBbYyZz

Specifies the font style, size and color for the title



ð List Background Color and Font

Specifies the background color of the list

AaBbYyZz

Specifies the font style, size and color for the list



ð Zebra Stripe

Enables the zebra stripe color effect. Once enabled, the combo box assigns the color for alternating rows.



ð WHERE Clause

Use Dynamic Where Clause

Prompts the user for data input to filter the returned data that is displayed. See examples below.

Message

This value displays as a title to the Where Clause input window when using a Dynamic Where Clause

Where Builder

Opens the Where Builder dialog for a graphic interface to create your Where Clause



ð Read Only

Disables user from editing data in field



ð Title Clickable

Specifies whether the DB Grid column is clickable to allow the column values to be sorted in ascending or descending order

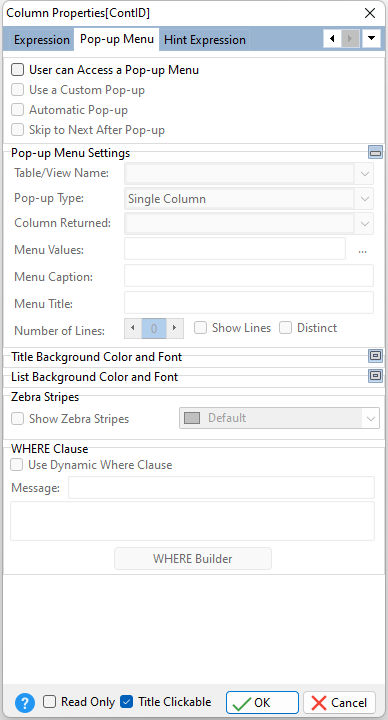

DBGrid_Column_Pop-upMenus





Dynamic WHERE Clause Examples



-- Example 01: (Dynamic WHERE clause with LIKE)

Message: Enter First Few Characters of Company

WHERE Clause: WHERE Company LIKE '&%' ORDER BY Company



-- Example 02: (Dynamic WHERE clause with CONTAINS)

Message: Enter Company Name

WHERE Clause: WHERE Company CONTAINS '&' ORDER BY Company



-- Example 03: (Dynamic WHERE clause with =)

Message: Enter State

WHERE Clause: WHERE CustState = '&' ORDER BY Company
