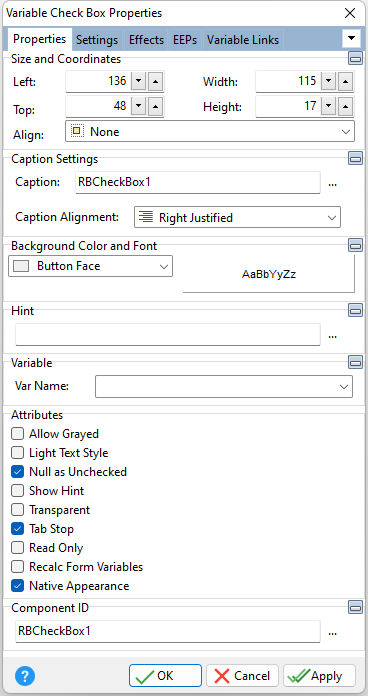

ð Size and Coordinates Left Specifies the left (horizontal) ordinate pixel of the object Top Specifies the top (vertical) ordinate pixel of the object Width Specifies the object width, in pixels Height Specifies the object height, in pixels Align Specifies the alignment of the object. The options are: None - Object can be moved anywhere because it is not aligned to the parent object Client - Aligns itself to the available client area by expanding to fill the parent object that it is in Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width
ð Caption Settings Caption Value which the object will display when the form is run Caption Alignment Specifies the justification of the text within the object. The options are: Left - Text is left justified Center - Text is center justified Right - Text is right justified
ð Background Color and Font Color Specifies the background color of the object AaBbYyZz Specifies the font style, size and color for the object
ð Hint Value which will display when the object is hovered over by the mouse cursor
ð Variable Choose the variable whose value will appear in the object from the list of currently defined variables
ð Attributes Allow Grayed Displays a "grayed" state when value does not match the checked or unchecked values Light Text Style Uses only the shadow to give the caption a three dimensional appearance Null as Unchecked Control is unchecked for Null values Show Hint Displays the defined hint Transparent Allows the background to become transparent to the parent object Tab Stop Determines whether or not field is part of tab order and user is able to land on this field Read Only Restricts the user from making any changes to the current value. The field is still part of the tab order. Recalc Form Variables Recalculates form variables, defined within the Expression Builder, when focus is shifted away from the object Native Appearance Specifies to display the control where the appearance will be rendered by the operating system
ð Component ID Unique identifier used when passing property parameters in statements |
|
