R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Variable Controls > Advanced Variable Rich Edit

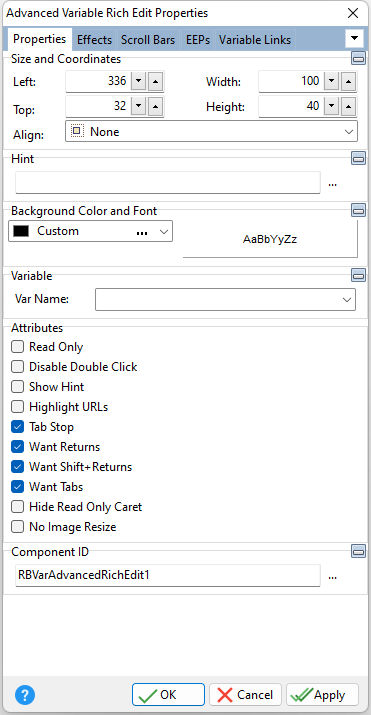

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Background Color and Font

Color

Specifies the background color of the object

AaBbYyZz

Specifies the font style, size and color for the object



ð Variable

Choose the variable whose value will appear in the object from the list of currently defined variables



ð Attributes

Read Only

Restricts the user from making any changes to the current value. The field is still part of the tab order.

Disabled Double Click

Restricts display of the R:BASE BLOB Editor when the user double clicks on the field

Show Hint

Displays the defined hint

Highlight URLs

Will highlight the URLs if this option is checked

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field

Want Returns

When checked, the [ENTER] key will insert hard return characters in the field instead of moving to the next field

Want Shift+Returns

When checked, the [SHIFT]+[ENTER] keys will start a new paragraph or start a new line inside the paragraph

Want Tabs

When checked, the [TAB] key will insert [TAB] characters in the field instead of moving to the next field

Hide Read Only Caret

When checked the editor hides the caret in "read only" mode

No Image Resize

When checked, resizing of images with the mouse is prevented



ð Component ID

Unique identifier used when passing property parameters in statements

AdvancedVarRichEdit_Prop
