R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Additional Controls > Collapse Panel

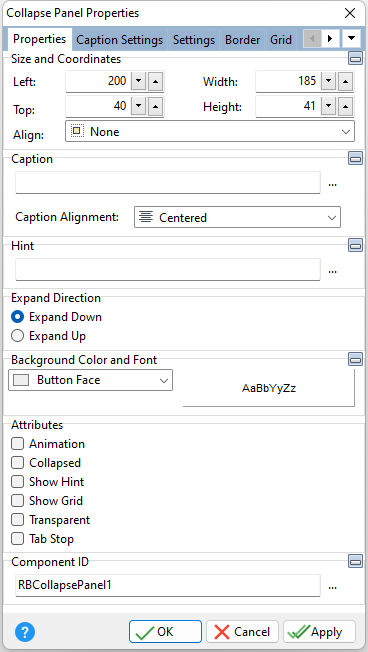

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Caption

Value which is displayed in the panel header



Caption Alignment

Specifies the justification of the text within the object. The options are:

Left - Text is left justified

Center - Text is center justified

Right - Text is right justified



ð Hint

Value which will display when the object is hovered over by the mouse cursor



ð Expand Direction

Specifies the direction for the panel expansion



ð Background Color and Font

Specifies the background color of the panel

AaBbYyZz

Specifies the font style, size and color for the panel



ð Attributes

Animation

Uses a gradual expanding/collapsing behavior

Collapsed

Specifies if the panel is initially collapsed

Show Hint

Displays the defined hint

Show Grid

Displays a grid pattern on the panel

Transparent

Allows the background to become transparent to the parent object

Tab Stop

Determines whether or not field is part of tab order and user is able to land on this field



ð Component ID

Unique identifier used when passing property parameters in statements

CollapsePanel_Prop
