Settings

Scroll Prev Top Next More



ð Values

Checked Value

Specifies the value of the data field if checked

Unchecked Value

Specifies the value of the data field if unchecked



ð Default State

 Specifies the default state of the data field

Unchecked

The default value of the data field is unchecked

Checked

The default value of the data field is checked



ð Use Custom Glyphs

Loads a custom glyph image file to display on the control. The custom glyph must contain all 9 different check box states like the image displayed below:



CheckBoxGlyph92



The check box states must progress in the following order:



Glyph #

Description

1

Unchecked

2

Checked

3

Grayed

4

Unchecked Down

5

Checked Down

6

Grayed Down

7

Unchecked Disabled

8

Checked Disabled

9

Grayed Disabled



Win Mask Color

Specifies the color for the custom glyph background mask color. For the above example glyph, the window mask color is teal.

Transparent Color

Specifies color for custom glyph background color when the transparent attribute is enabled.

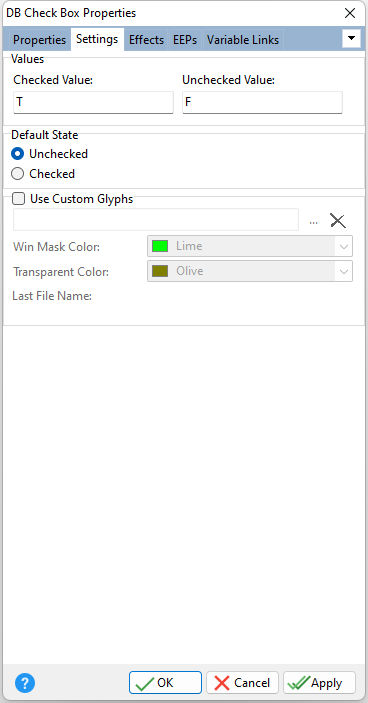

DBCheckBox_Settings
