These parameters are specific to changing how the DIALOG "window" is displayed.



Parameter

Value

Description

MODERN_LOOK

ON

OFF

Specifies to use the modern look of recent Windows Aero releases. The modern look performs automatic message wrapping for large content at 450 pixels.



Please note: The custom formatting used in existing DIALOG commands will be ignored.

ICON_FILE

value

Specifies the external path and name for an image file.



NOTE: Any of the below image file formats can be used. There is no size limitation, though 32x32 is recommended. The image can be resized using the RESIZE_ICON parameter. To display custom BMP images with transparency, use the first pixel, which

is on the bottom left corner, as the transparent color. Any pixel with that color becomes transparent.



wmf

Windows Metafiles

emf

Enhanced Metafiles

ico

Icon Files

bmp

Windows Bitmap Files

png

Portable Network Graphics

jpeg, jpg

JPEG Image File

tif, tiff

TIFF Image File

gif

Compuserve GIF Image

jp2, j2k, jpc

JPEG 2000 Image

tga, afi

Truevision Targa File

vst

Truevision Vista File

pcx, pcc

ZSoft PC Paintbrush

dcx

DCX Image File



RESIZE_ICON

ON

OFF

Specifies to resize the image (except .ico) to 32x32

ROSK_BUTTON

ON

OFF

Specifies to display a button to launch the R:BASE On-Screen Keyboard (ROSK)

CURSOR_POS

value

Specifies the cursor position, for the specified text in the edit field.

WINDOW_CAPTION

OFF

SMALL

Customizes the window caption. The OFF value makes window caption invisible. The SMALL value makes window caption small (tool window).

WINDOW_BACK_COLOR

value

To change the background color of window area. User can specify the integer value or type one of the predefined color names.

TRANSPARENCY

0 - 255

Set the transparency to specify a layered window with a translucent color. The transparency value specifies the degree of translucency.

TOP

value

Moves the dialog box location, in pixels, from the top of the screen down.

LEFT

value

Moves the dialog box location, in pixels, from the left of the screen over.

BOTTOM

value

Moves the dialog box location, in pixels, from the bottom of the screen up.

RIGHT

value

Moves the dialog box location, in pixels, from the right of the screen over.

THEMENAME

value

Specifies one of 86 pre-defined Themes, or a custom Theme loaded into R:BASE. See Themes.



NOTE: All previously defined DIALOG commands which are redefined to use Themes should be thoroughly checked prior to putting into production as objects and text may look substantially different.

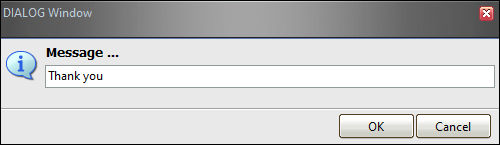

Example (Cursor Position):



SET VAR vResponse TEXT = 'Thank you'



DIALOG 'Message ...' vResponse vEndKey  1  +

CAPTION 'DIALOG Window' ICON INFO +

OPTION MESSAGE_FONT_COLOR 2147483647 +

|MESSAGE_BACK_COLOR -16777201+

|MESSAGE_FONT_NAME Tahoma+

|MESSAGE_FONT_SIZE 10+

|MESSAGE_BOLD ON+

|TOP 200 +

|LEFT 200 +

|THEMENAME Longhorn +

|CURSOR_POS 6



DIALOG_POS6



Example (Custom Image):



DIALOG 'Do you wish to continue?' vResponse vEndKey YES +

CAPTION 'Confirm' OPTION ICON_FILE Logo128x128.jpg|RESIZE_ICON ON +

|MESSAGE_FONT_COLOR NAVY|MESSAGE_FONT_NAME Tahoma +

|MESSAGE_FONT_SIZE 10|MESSAGE_BOLD ON

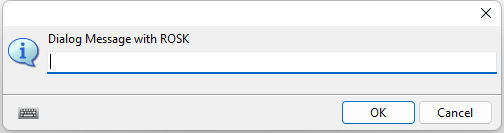

Example (R:BASE On-Screen Keyboard (ROSK):



DIALOG 'Dialog Message with ROSK' vResponse vEndKey 1 +

CAPTION ' ' OPTION ROSK_BUTTON ON



DIALOG_ROSK

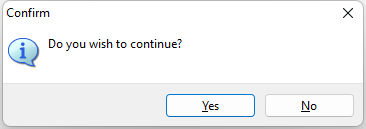

Example (Modern Look):



DIALOG 'Do you wish to continue?' vResponse vEndKey YES +

CAPTION 'Confirm' OPTION MODERN_LOOK ON



DIALOG_MODERN1
