Effects

Scroll Prev Top Next More



ð Visible Frame

Displays the object frame when checked



ð Frame Hot Track

Enables the frame to adjust when the mouse enters the control. When this property is enabled (and Visible Frame is also set to enabled), the frame of the control toggles between the Frame Style and the Frame Hot Style settings.



Specifically, when the mouse is positioned over the control or the control has the input focus, the frame is drawn using the Frame Hot Style setting. When the mouse is not positioned over the control and the control does not have the input focus, the frame is drawn using the Frame Style.



ð Windows Theme

Applies the current Windows theme to the control



ð Frame Sides

Specifies which sides of the border are visible



ð Frame Settings

Frame Color

Specifies the color of the frame

Frame Hot Color

Specifies the color to be used to draw the control's frame when Frame Hot Style is set to Flat and the mouse cursor is positioned over the control or the control has the input focus.

Frame Hot Style

This property is only used when Frame Hot Track and Frame Visible are both enabled. Use this property to specify the style of the frame drawn around a component when the mouse cursor is positioned over the control or the control has the input focus.

Frame Style

Specifies the style of the frame drawn around a component when Frame Visible is enabled.



ð Row Colors

Fixed Color

Specifies the color used when drawing the lines between the fixed cells of the grid.

Row Background Color Field

Use this option to specify the column name assigned to store the background color for the row

Row Font Color Field

Use this option to specify the column name assigned to store the font color for the row



ð Color Options

Disabled Color

Specifies the background color for the control when disabled

Focus Color

Specifies the background color for the control when the cursor focused upon it

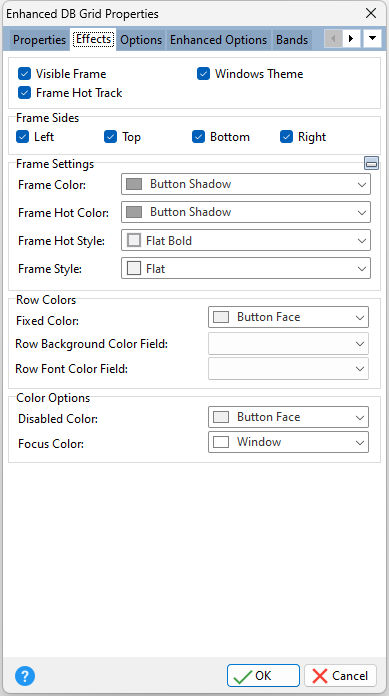

EnhancedDBGrid_Effects
