Label

Scroll Prev Top Next More



ð Properties

Alignment (H, V)

Specifies the horizontal and vertical justification of the data

Angle

Specifies the label's rotation angle

Depth

Specifies the depth of the label's text shadow

Button Glyph

Specifies a glyph image used to draw the label’s caption, which can be loaded, deleted, and previewed

Label Effect

Specifies the type of 3D shadow effect applied to a label

Normal - no visual effects or shadow is applied

Fun - the shadow has a gradient effect

Extrude - the shadow uses the Shadowed Color value

Cool - the shadow is visible only at the Depth position

Label Style

Specifies the painting style of the label's text

Normal - the label is drawn as is without any special effects

Raised - the label is drawn using a raised style

Lowered - the label is drawn in a lowered style

OutLine - the label is painted with an outline

Orientation

Specifies the orientation of the label's text shadow

Shadow Color

Specifies the color of the label's text shadow

Show Accelerator

If unchecked, the text will show the ampersand (&) symbol as opposed to underscoring the next character for a keyboard shortcut

Show End Ellipsis

Specifies whether to display an end ellipsis when the content is clipped

Word Wrap

Determines whether the label caption is wrapped

Line Visible

Provides access to appearance options of a line drawn next to the label's text

Line Alignment

Specifies the position of a line within the label

Top - the line is aligned to the label's top

Center - the line is centered within the label

Bottom - the line is aligned to the label's bottom

Line Inner Color

Specifies the color of the label’s inner line

Line Outer Color

Specifies the color of the label’s outer line

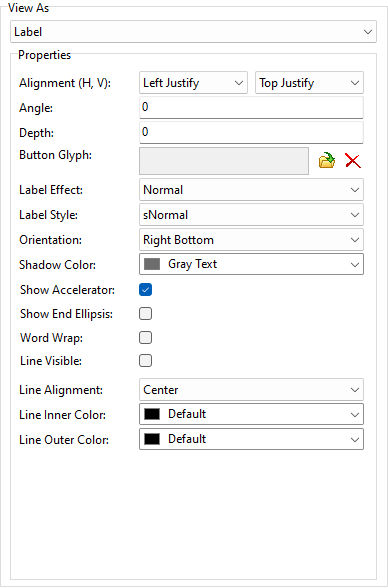

DBTreeGrid_Column_Col_Label
