R:BASE 11 Help

Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Additional Controls > Layout Manager > Elements > Layout Group

Other Options

Scroll Prev Top Next More



ð Button Options

Horizontal Alignment

Specifies the horizontal justification of layout group buttons

Default Size (H, W)

Specifies the default height and width for layout group buttons

Expand Button

Provides access to an expand button that belongs to a group

Visible

Specifies whether layout group buttons are visible



ð Buttons

New

Adds a new layout group button

Edit

Edits the currently selected layout group button

Delete

Deletes the currently selected layout group button



The Group Button display sequence can be reordered by selecting the green up and down arrow buttons.



ð General

Hint

Specifies the button hint

Size (H, W)

Specifies the height and width of the button

Glyph

Specifies a glyph image to display for the button, which can be loaded, deleted, and previewed

Enabled

Specifies the button's accessibility to end-users

Visible

Specifies if the button is displayed



ð EEPs

Clicking the button will run the specified EEP

To load a pre-existing EEP file, select the "..." button.

In

Specifies a command block to run within a procedure file

Edit...

Opens the R:BASE Editor to create/edit an external EEP file

Edit Custom EEP...

Opens the R:BASE Editor to create/edit a custom EEP that is stored within the form

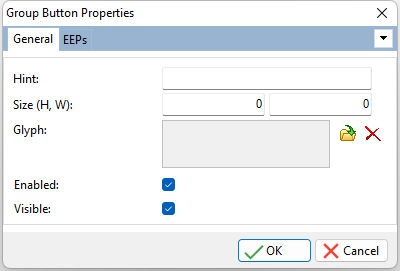

LayoutGroupButton_Props

ð Size Options

Height, Width

Specifies the height and width of the layout group

Maximum Height, Width

Specifies the maximum height and width of the layout group, in pixels. These properties are in effect only for layout groups whose size is dynamically calculated (the layout element Align Horizontal and/or Align Vertical property is set to Client), and only if the immediate parent group includes two or more such layout elements.

Horizontal Resize

Specifies whether the layout group can be resized horizontally

Vertical Resize

Specifies whether the layout group can be resized vertically

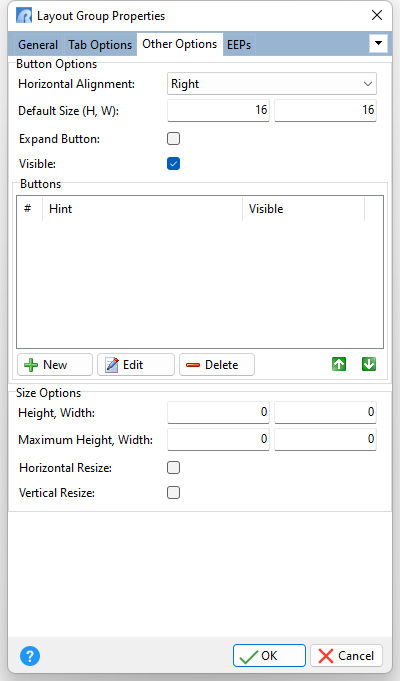

LayoutGroup_OtherOptions
