Checkbox

Scroll Prev Top Next More

CheckBox

The Checkbox control places a static check box object on the report.

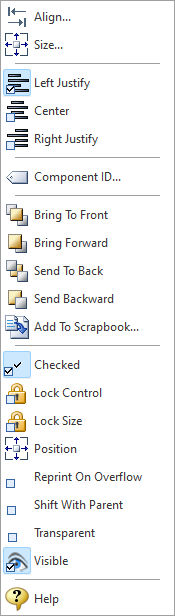

Context Menu (right click) Options



Align - Displays the Alignment dialog for adjusting the horizontal and vertical alignment of the selected objects

Size - Displays the Size dialog for adjusting the height and width of the selected objects

Font - Displays the Font dialog for the font style, size and color of the object

Left Justify - Text is left justified

Center - Text is center justified

Right Justify - Text is right justified

Component ID - Unique identifier used when passing PROPERTY/GETPROPERTY parameters in statements calling the report

Bring To Front - Places the currently selected object on the foreground of layered objects

Bring Forward - Moves the currently selected object forward one layer at a time

Send To Back - Places the currently selected object in the background of layered objects

Send Backward - Moves the currently selected object backward one layer at a time

Add to Scrapbook - Places the currently selected object in the Report Scrapbook

Checked - Determines if the object appears checked or not

Lock Control - Locks the selected control(s) to prevent any accidental changes

Lock Size - Locks the selected control(s) to specifically prevent accidental size changes

Position - Opens the Position dialog window for specifying hard-coded coordinates

Reprint On Overflow - Reprint On Overflow applies to situations where a stretchable component is stretching across pages. If the text overflows onto a new page, any components that are on the same band will reprint on the new page (if Reprint On Overflow is checked).

Shift With Parent - Shift With Parent applies to situations where a stretchable component is stretching. If Shift With Parent is checked, the report component will move based on the amount of stretching the text requires. When you want components to appear at the bottom of a memo, this is a useful feature. If the memo stretches to a new page, the components will print on the next page.

Transparent - Allows the object to become transparent to the background object

Visible - The Visible property determines whether a report component will be printed

Help - Launches the Help file chapter for the specific control

SM_Checkbox
