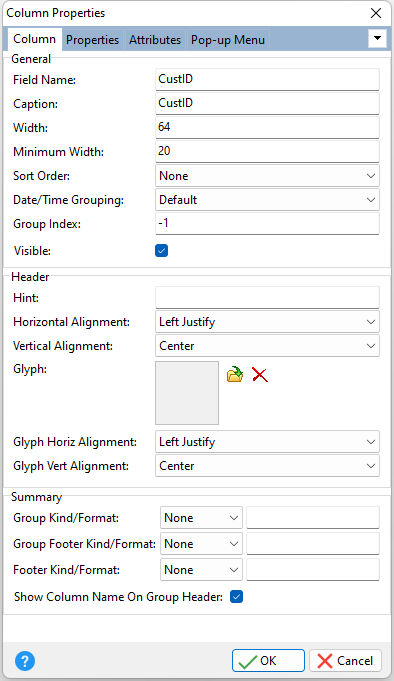

ð General Field Name Displays the field name being modified or under review Caption Specifies the display caption for the grid column Width Specifies the grid column width in pixels Minimum Width Specifies the minimum allowed grid column width in pixels Sort Order Specifies the field sort order; ascending, descending, or none Date/Time Grouping Specifies the grouping method for date/time fields Group Index Specifies if the field is used as a Group. A value of "-1" sets the field as not grouped. Valid group values start from zero. 0 means first field to be grouped, then 1 is subgroup of 0, etc. Once a Group Index is specified, the column will appear in the "Group By" box. To allow users to create their own groups, enable the Show Group By Box setting, where users can then drag the grid column header to the Group Box. Individual columns can also be set to allow/not allow grouping. Visible Specifies if the column is visible
ð Header Hint Specifies the hint which appears over the column header Horizontal Alignment Specifies the horizontal justification of the text within the column header Vertical Alignment Specifies the vertical justification of the text within the column header Glyph Specifies a glyph image to display for the header, which can be loaded, deleted, and previewed Glyph Horiz Alignment Specifies the horizontal justification of the glyph within the column header Glyph Vert Alignment Specifies the vertical justification of the glyph within the column header
ð Summary Group Kind/Format Specifies the kind of aggregate function used for the column in the group node (sum, min, max, count, average), and the format for the column in the group node Group Footer Kind/Format Specifies the kind of aggregate function used for the column in the group footer (sum, min, max, count, average), and the format for the column in the group footer Footer Kind/Format Specifies the kind of aggregate function used for the column in the grid footer (sum, min, max, count, average) and the format for the column in the grid footer Show Column Name on Group Header Specifies to display the column name on the group header
|
|
