PDF Radio Button

Scroll Prev Top Next More

PDFFormRadioButton



The PDF Radio Button control places a radio button object on the PDF output that allows the user to choose only one of a predefined set of options. When using PDF Radio Buttons, all buttons which behave as a group must have the same "Field Name" value. The radio button data can be accessed by a java script function.

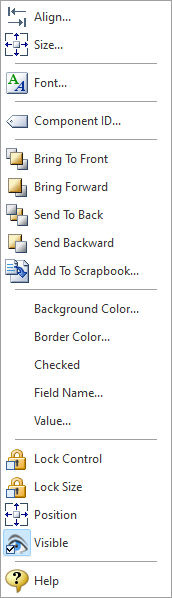

Context Menu (right click) Options



Align - Displays the Alignment dialog for adjusting the horizontal and vertical alignment of the selected objects

Size - Displays the Size dialog for adjusting the height and width of the selected objects

Font - Displays the Font dialog for the font style, size and color of the object

Component ID - Unique identifier used when passing PROPERTY/GETPROPERTY parameters in statements calling the report

Bring To Front - Places the currently selected object on the foreground of layered objects

Bring Forward - Moves the currently selected object forward one layer at a time

Send To Back - Places the currently selected object in the background of layered objects

Send Backward - Moves the currently selected object backward one layer at a time

Add to Scrapbook - Places the currently selected object in the Report Scrapbook

Background Color - Specifies the background color for the object

Border Color - Specifies the object's border color on the PDF output

Checked - Specifies if the radio button is checked when the PDF file is launched

Field Name - Specifies the object's field name on the PDF output

Value - Specifies the value for the radio button. Each value for a group of radio buttons would be different.

Lock Control - Locks the selected control(s) to prevent any accidental changes

Lock Size - Locks the selected control(s) to specifically prevent accidental size changes

Position - Opens the Position dialog window for specifying hard-coded coordinates

Visible - The Visible property determines whether a report component will be printed

Help - Launches the Help file chapter for the specific control





See Understanding PDF Form Controls
