Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Additional Controls > Tile Menu

Properties

Scroll Prev Top Next More



ð Size and Coordinates

Left

Specifies the left (horizontal) ordinate pixel of the object

Top

Specifies the top (vertical) ordinate pixel of the object

Width

Specifies the object width, in pixels

Height

Specifies the object height, in pixels

Align

Specifies the alignment of the object. The options are:

None - Object can be moved anywhere because it is not aligned to the parent object

Client - Aligns itself to the available client area by expanding to fill the parent object that it is in

Left - Aligns itself to the left side of the parent object growing or shrinking to match parent height

Right - Aligns itself to the right side of the parent object growing or shrinking to match parent height

Top - Aligns itself to the top side of the parent object growing or shrinking to match parent width

Bottom - Aligns itself to the bottom side of the parent object growing or shrinking to match parent width



ð Component ID

Unique identifier used when passing property parameters in statements



ð View

Group Layout

Specifies the control's group layout, horizontal or vertical. When using the horizontal layout, tiles that belong to one group can be arranged in multiple columns. For the vertical layout, tiles in a group are always arranged in one column. The default value is horizontal.

Group Max Row Count

Specifies the maximum number of rows across which tile items are arranged in tile groups

Group Indent

Specifies the space (in pixels) between visible tile groups. Refer below for the Group Indent/Item Indent relationship.

Indent (Horizontal, Vertical)

Specifies the space (in pixels) between the content of a tile menu and its left and right edges, and the space between visible tile groups and the top and bottom edges of a tile menu

Item (Height, Width)

Specifies a regular tile item's height and width (in pixels)

Item Indent

Specifies the space (in pixels) between the Group Caption and the space occupied tiles in a group. Refer below for the Group Indent/Item Indent relationship.

Center Horizontal

Horizontally centers a tile menu's main page content

Center Vertical

Vertically centers a tile menu's main page content

Fixed Horizontal Indent

Applies the margin between the content of a tile menu and its visible left and right edges

Fixed Vertical Indent

Applies the margin between the content of a tile menu and its visible top and bottom edges

Enabled

Specifies the control's accessibility to end-users

Tab Stop

Determines whether or not the control is part of tab order and user is able to land on this field

Transparent

Specifies whether the control is transparent

Visible

Specifies if the control is visible

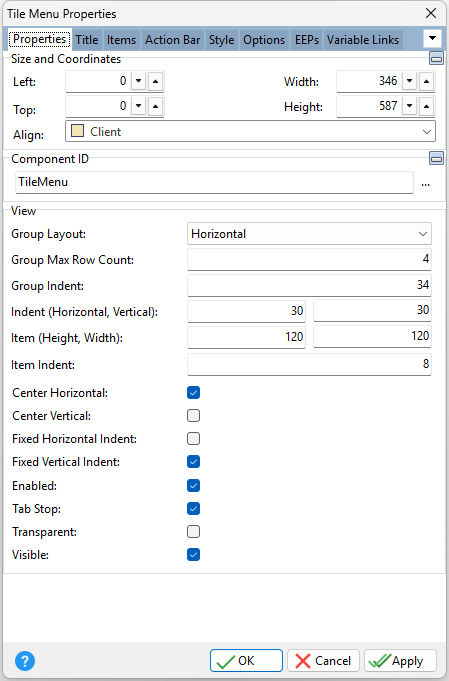

TileMenu_Prop



Group Indent and Item Indent

The Group Indent and Item Indent properties work hand and hand to specify object spacing. Group Indent specifies the space between visible tile groups (default = 56). Item Indent specifies the space between the Group Caption and the space occupied tiles in a group (default = 8). With the two, an internal Virtual Group Width is maintained with the following formula:



VirtualGroupWidth = (GoupIndent – (2 * ItemIndent))



The Virtual Group Width value is calculated every time Item Indent and Group Indent are changed, and the Virtual Group Width must always be higher than Item Indent.
