Navigation: How To (Forms, Reports, and more) > Forms > Form Designer > Form Controls > Database Controls > DB Vertical Grid > Rows > Multi-Editor Rows

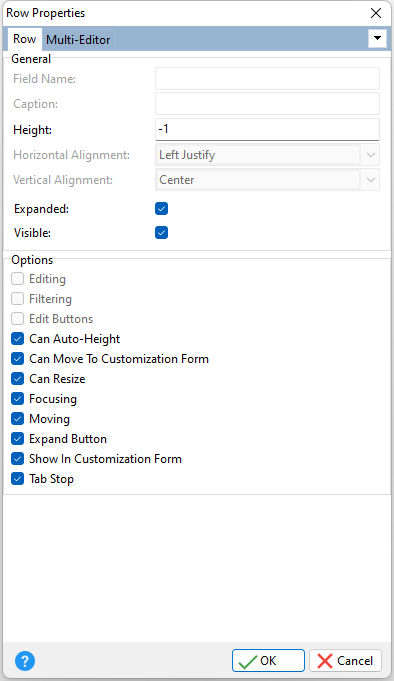

Row

Scroll Prev Top Next More



ð General

Height

Specifies the height of the row in pixels (default = -1). A value of -1 indicates that the height of the row depends on its content. This property differs from the Row Height property, in that the Height affects only the specified row. This property takes priority over the Row Height property.

Expanded

Specifies whether the current row is expanded/collapsed

Visible

Specifies if the row is visible



ð Options

Can Auto-Height

Specifies whether to adjust the row height to show all the text in a cell. If "Can Auto Height" is checked/true or the value of the Cell Auto Height property is checked/true, row(s) automatically change height to accommodate their content without clipping.

Can Move To Customization Form

Specifies whether the current row can be moved to the Customization Form. If the value is checked/true, the user can move the desired row to the Customization Form. It could be done by dragging the row header onto the Customization Form.

Can Resize

Specifies whether the user can change the height of specified row. If the value is checked/true, the user can drag the bottom edge of specified row in the grid control to resize this row. The property overrides the state for the specified row that was set by the Row Sizing property.

Focusing

Specifies whether an item cell can be focused

Moving

Specifies if end-users can move an item

Expand Button

Specifies whether to display an expand button on the row if this row is parent. If the is unchecked/false, the expand button is not shown and as such, the user's actions of expanding or collapsing are unavailable. If the above Expanded property is unchecked/false, the parent row is collapsed and the user cannot expand the parent row. If Expanded is checked/true, the parent row is expanded and the user cannot collapse the parent row.

Show In Customization Form

Specifies if the current row can be shown in the Customization Form. When working with the Customization Form, the user can rearrange rows by dragging them to/from the Customization Form or within the grid control. If the value is unchecked/false, the current row is not displayed in the Customization Form. As a result, the user could not rearrange this row among other rows in the Customization Form when dropped into the Customization Form. It could be done only within the grid control when the Customization Form is visible.

Tab Stop

Determines whether or not the column is part of tab order and user is able to land on this field
