Captions

Scroll Prev Top Next More

The tile frame is capable of displaying up to four text blocks on the surface. Use the Text 1 tab to specify text settings of the first text block. By default, this text block is displayed in the tile's top-left corner. Select the Text 2, Text 3, and Text 4 tabs to assign a text block to the other surface areas of the tile.



Value

Specifies the value for the text block

Position

Specifies the position of the text block

Alignment

Specifies the horizontal justification of the text block

Indent (H, V)

Specifies the horizontal and vertical margin (in pixels) of the text block

Transparent

Specifies whether the text block is transparent

Word Wrap

Specifies if the text block can span across multiple lines



ð Style Overrides

Color

Specifies the style override for the background color

Text Color

Specifies the style override for the text color

Font

Specifies the style override for the font style, size, and color

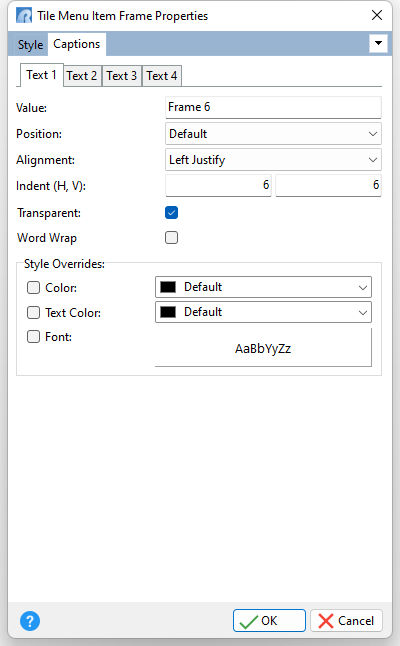

TileMenuItem_Frame_Captions
